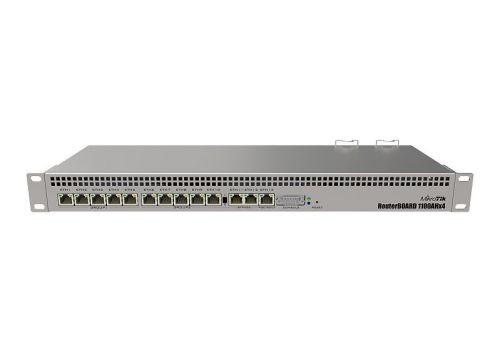

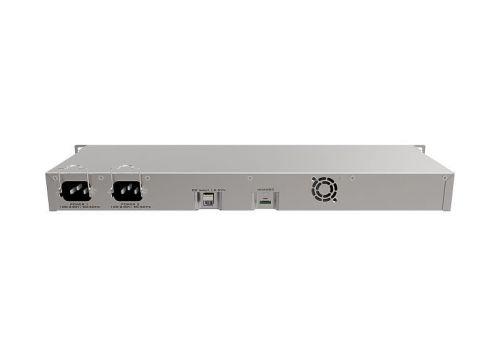

MIKROTIK RB1100AHX4

Details

Product code

RB1100x4

Architecture

ARM 32bit

CPU

AL21400

CPU core count

4

CPU nominal frequency

1.4 GHz

Dimensions

444 x 148 x 47 mm

License level

6

Operating System

RouterOS

Size of RAM

1 GB

Storage size

128 MB

Storage type

NAND

Tested ambient temperature

-40°C to 70°C

Powering

PoE in

802.3af/at

PoE in input Voltage

20-57 V

Number of AC inputs

2

AC input range

100-240

Number of DC inputs

2 (2-pin terminal, PoE-IN)

2-pin terminal input Voltage

-48, 12-57 V

Max power consumption

20 W

Max power consumption without attachments

20W

Ethernet

10/100/1000 Ethernet ports

13

Peripherals

Memory card type

microSD

Memory Cards

1

Serial port

RS232

Other

Current Monitor

Yes

PCB temperature monitor

Yes

Voltage Monitor

Yes
